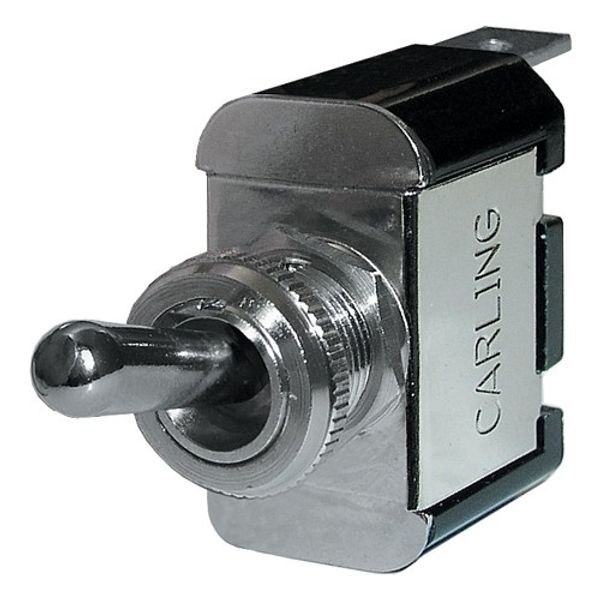

Blue Sea W/Deck Toggle Switch S/Pole (On)-Off-(On)

 Specially manufactured for use in WeatherDeck™ Waterproof Panels

Rated IP67 - temporary immersion for 30 minutes, when mounted with a WeatherDeck™ Toggle Switch Boot (8-24138)

Nickel-plated brass & phenolic non-corrosive construction

Specifications Single Pole

Rating: 250 Volts AC: 10 Amps

Rating: 125 Volts AC: 15 Amps

Rating: 12 Volts DC: 15 Amps

Terminal Size: 0.25" (6.35mm)

Terminal Type: Quick Connect Tab

Specifications Double Pole

Rating: 30 Volts DC: 5 Amps

Terminal Size: 0.25" (6.35mm)

Terminal Type: Quick Connect Tab
